- A 5U, 48-input/16-output, 96kHz digital I/O expansion for A&H dLive and SQ mixing consoles
- Each input features a remote-controllable microphone preamp with individual phantom power LEDs
- Two DX expansion ports let you hook up 1 DX32 or up to 2 DX168/ DX164-W expanders
- Connect up to 2 GX4816s to an SQ system, 3 to a dLive C Class system, or 5 to a dLive S Class system
- Plug-and-play connection via standard Cat 5e cables (EtherCon ports) with automatic IP addressing
Electro-Voice ETX-15P 2000W 15 inch Powered Speaker
Original price was: R42700,00.R39999,00Current price is: R39999,00.
Allen & Heath AB168 16in/8out 48kHz Expander remote AudioRack for Qu, Avantis and SQ mixers
Original price was: R24650,00.R23999,00Current price is: R23999,00.
Allen & Heath GX4816 48×16 Portable GX Expander with DX Sockets 5U, 48-input/16-output, 96kHz Digital I/O
R82595,00
Technical Information
- Type:Portable GX Expander
- Compatibility:A&H dLive, SQ mixing consoles
- Channels:48 x 16
- Inputs – Mic Preamps:48 x XLR
- Outputs – Main:16 x XLR
- Data I/O:1 x EtherCon (GX), 2 x EtherCon (DX)
- Rackmountable:5U
- Power Source:Standard IEC AC cable
- Height:9″
- Depth:10″
- Width:18.9″
- Weight:17.6 lbs.
- Manufacturer Part Number:AH-GX-4816
Description

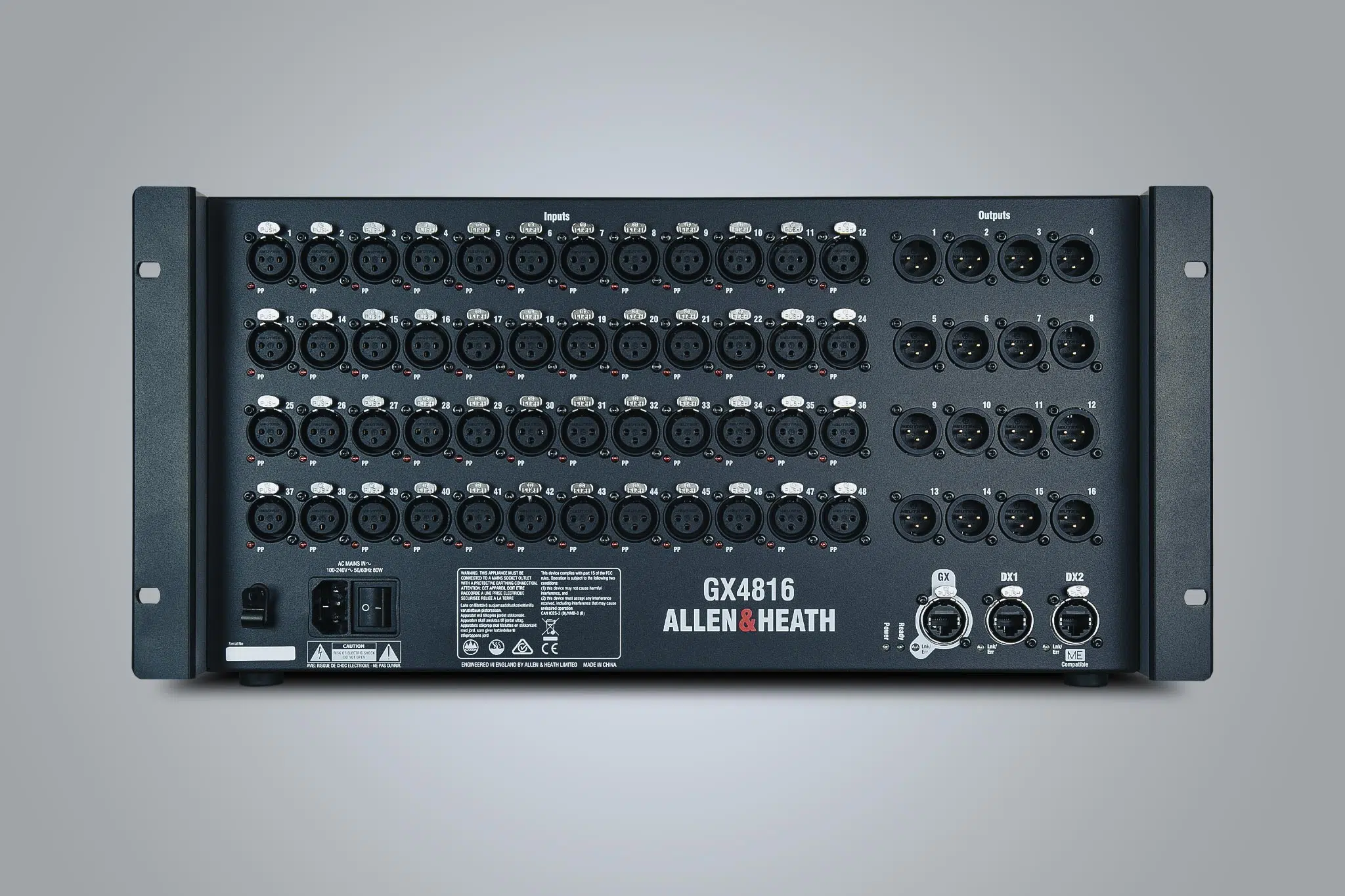

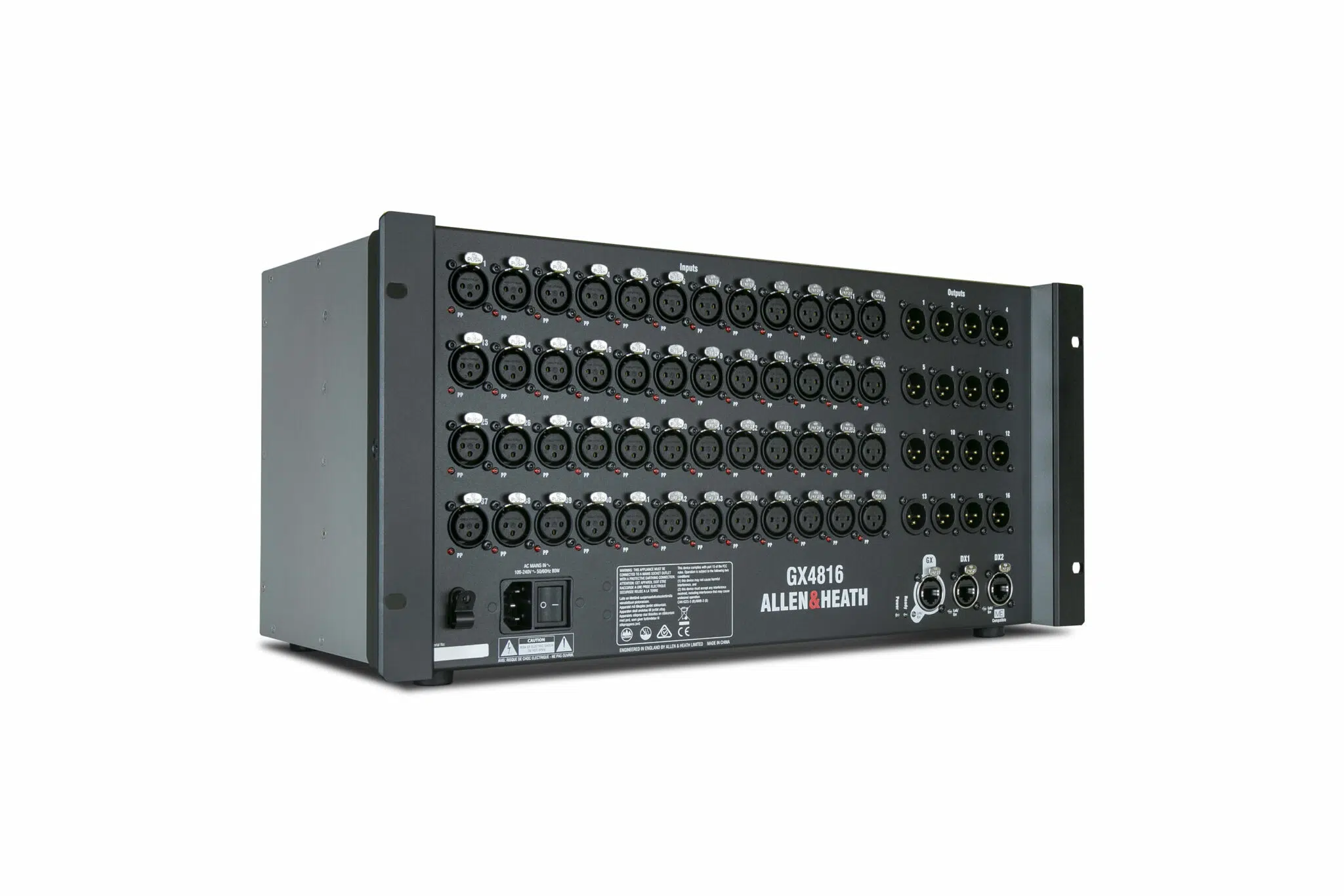

Allen & Heath GX4816 48×16 Portable GX Expander with DX Sockets
5U, 48-input/16-output, 96kHz Digital I/O Expansion for A&H dLive and SQ Mixing Consoles, with 48 Mic Pres, Phantom Power, and 2 DX Expansion Ports
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for Qu*, SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors.
48 Mic Preamps
+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.
16 Line Outs
Balanced, relay protected line outputs on XLR.
Plug-and-Play
No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.
The GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.
