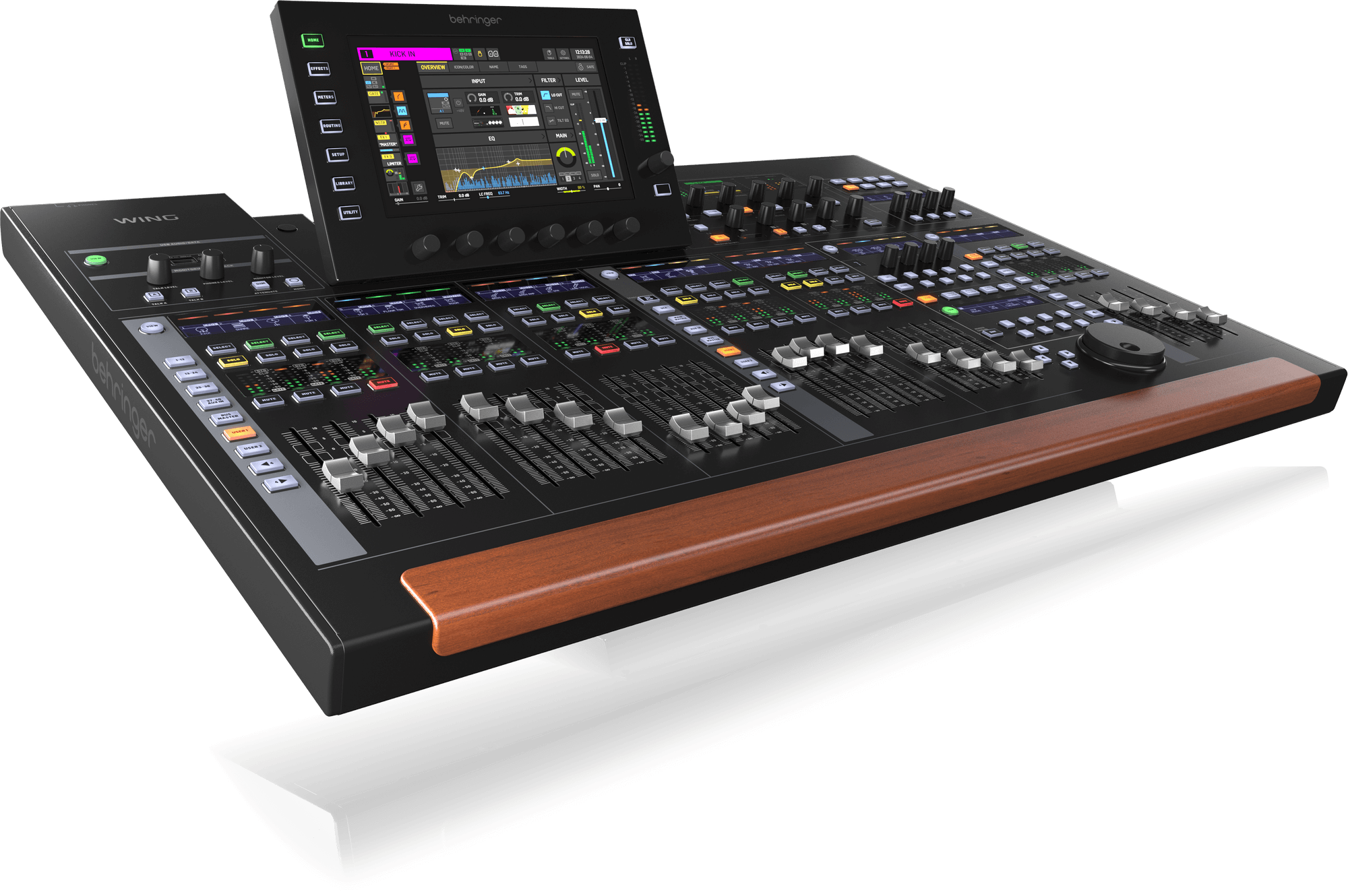

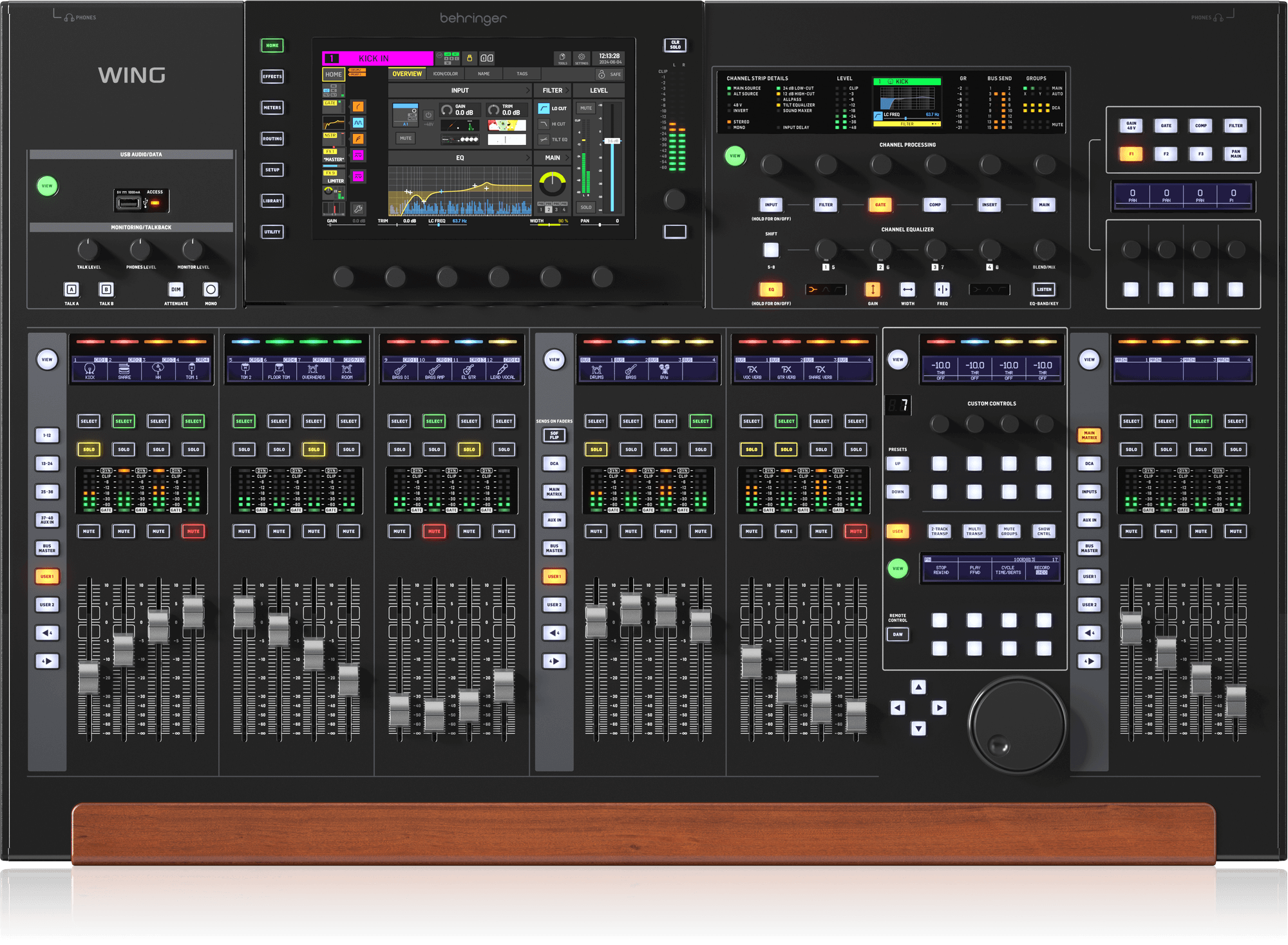

Behringer WING 48-channel , 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1″ Touch Screen and 24 Fader Control Surface

48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps, 8 Midas PRO Outputs, 10.1″ Touch Screen and 24 Fader Control Surface

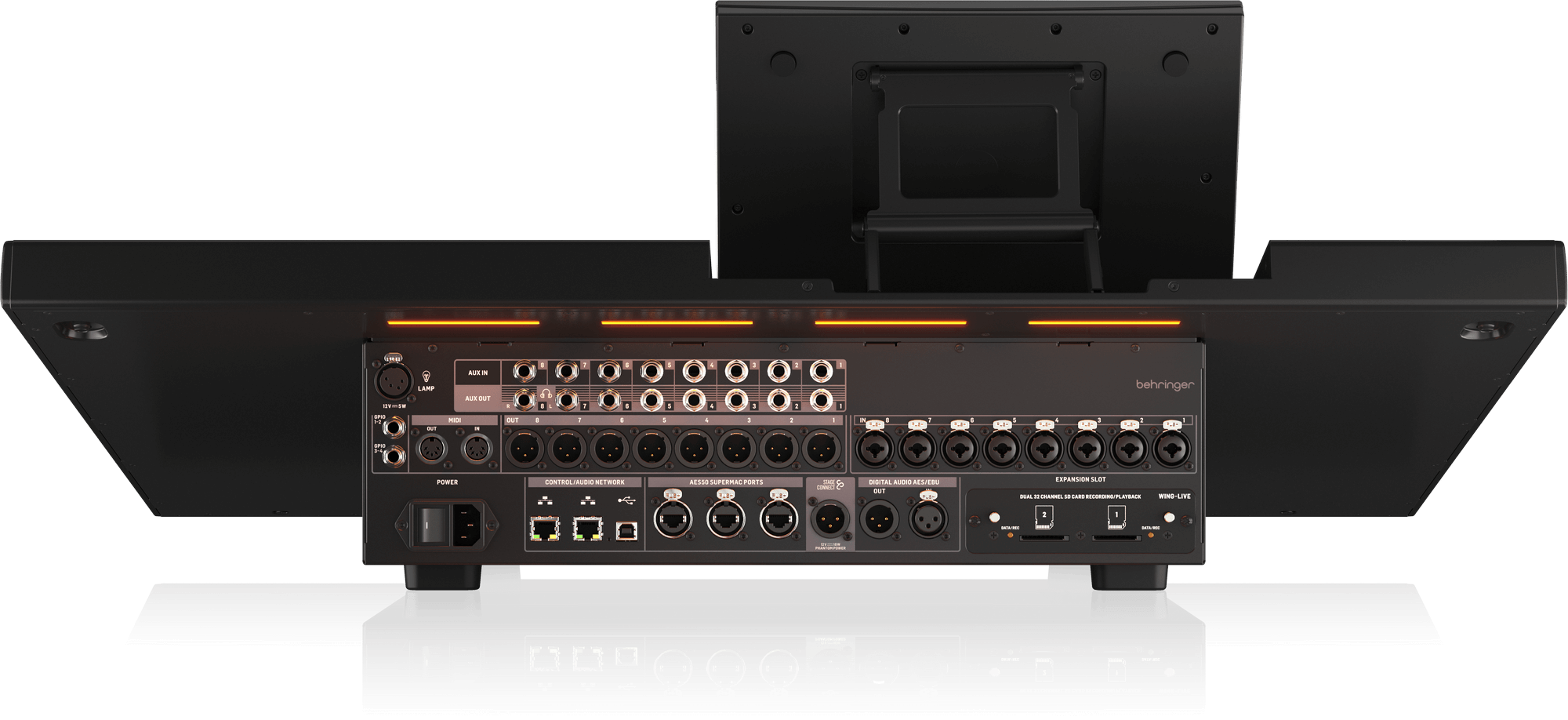

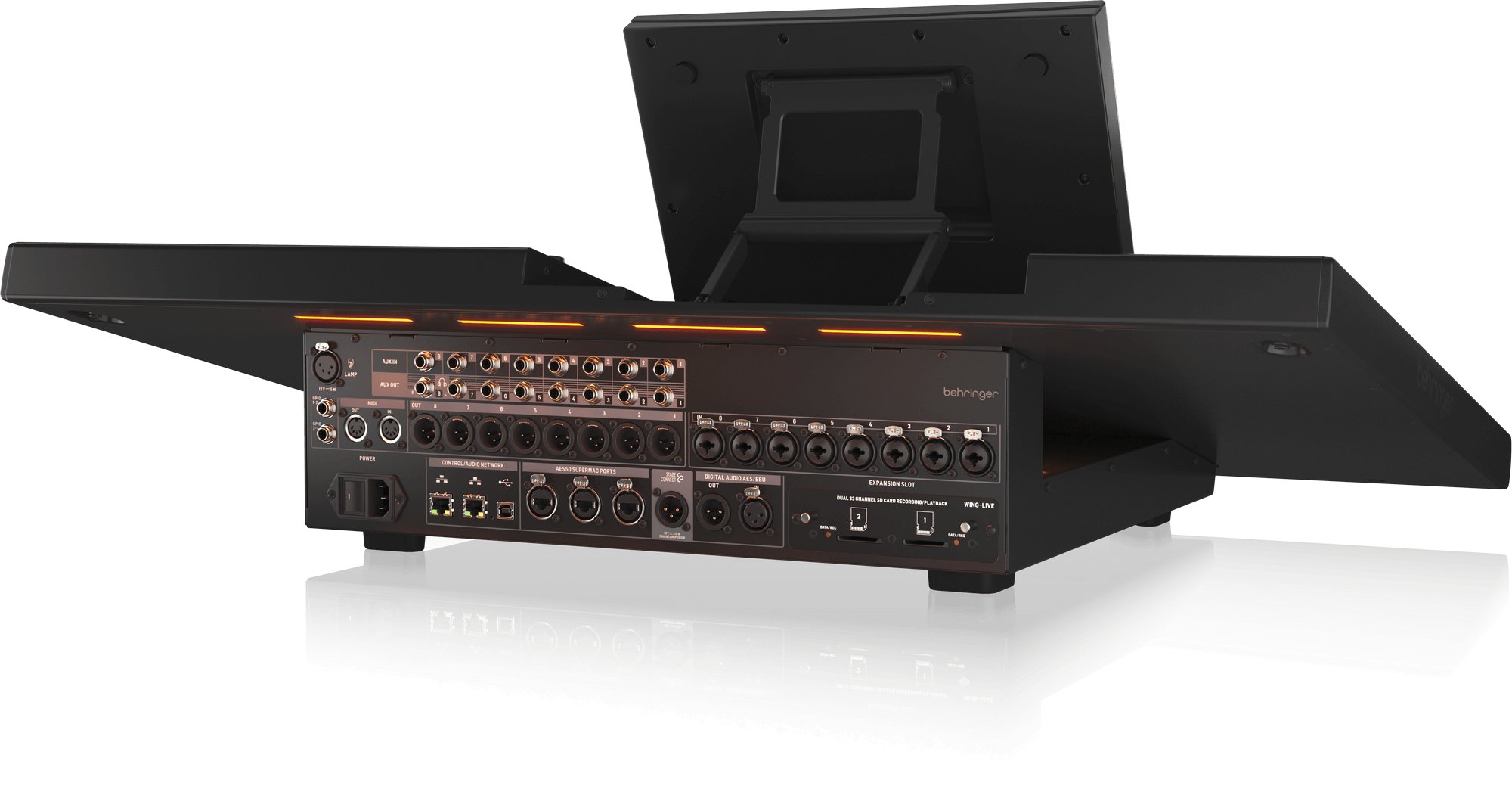

• Analog XLR/TRS Inputs
  The same Midas PRO preamps as in the M32 and DL32 series provide great sound with unmatched dynamic range. The XLR/TRS combo connector allows connecting both microphone and line-level cables to the input, often removing the need for DI boxes.
• StageConnect – The Future of XLR
  Features 32-channel bidirectional audio transmission with sub-millisecond latency over a standard 3-pin XLR DMX cable or XLR microphone cable for short distances. The StageConnect host device provides 18W of power and control for client devices, several of which can be used in a chain.
• AES50 SuperMAC
  The 3 ports provide a total of 144 input and 144 output streams from external devices like digital stageboxes, personal monitoring systems, supplemental consoles, and more. The point-to-point connections don’t require any network configuration, are rock-solid, and perform at exactly 6-sample latency (0.125 milliseconds).
• Analog XLR Outputs
  The same Midas PRO outputs as the industry-standard Midas M32 and DL32 series.
• MIDI
  Enhanced automation, control, and synchronization across the console and externally connected devices.
• GPIO
  Multi-functional and programmable connections for enhanced integration with installed equipment, such as an “on air” lamp in the studio. Programmable GPIO delays additionally allow triggering of sequential events, e.g., automatically powering up amplifier racks after the console is fully booted.
• AES/EBU
  Stereo in and out digital audio channels at 24-bit/48 kHz.
• USB Type A
  Record or play up to 4 channels to and from USB drives inserted at the top of the console.
• Class-compliant USB Audio/MIDI Interface
  Send and receive 48 channels to and from your DAW, and use DAW templates to control your device from WING with MCU support.
• Headphone Outputs
  2 high-power, low-distortion headphone outputs sharing the Main Out 7/8 signal.

Experience Total Recall

Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you’re working on a complex live performance or a musical theater project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need.

Enjoy World-Class Effects

WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor*. No external gear is required.

WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.

Configure WING to Suit You

Record Up to 64 ChannelsThe WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.

Swap Out External Cards with EaseYou can easily change the WING LIVE card for a WING DANTE card, enabling full 64×64 channel Dante networking connectivity. We are also planning other expansion cards for MADI and Waves Soundgrid, for example.

Plus Another 64×64 Channels via Internal AoIP ModulesThe internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission. Our retailers can also help you upgrade your existing WING or order a new WING console with your preferred card pre-installed. We currently have AoIP-Dante and AoIP-WSG (Waves Soundgrid) modules available.

StageConnect —Connect More with Less

Transfer 32 channels of 44.1kHz/48kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable.

Need assistance with calculating cable lengths? Try our StageConnect Configurator app.
