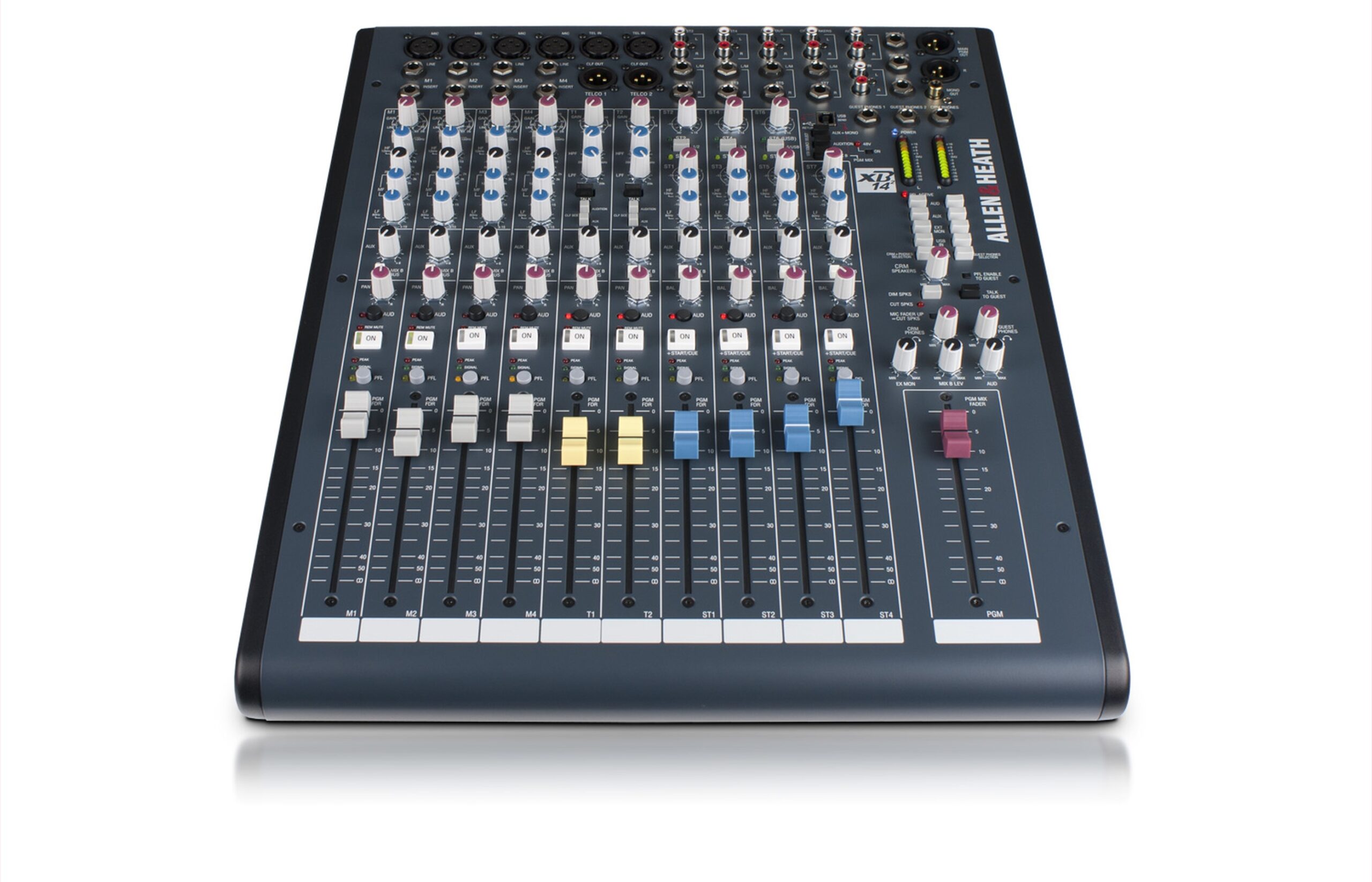

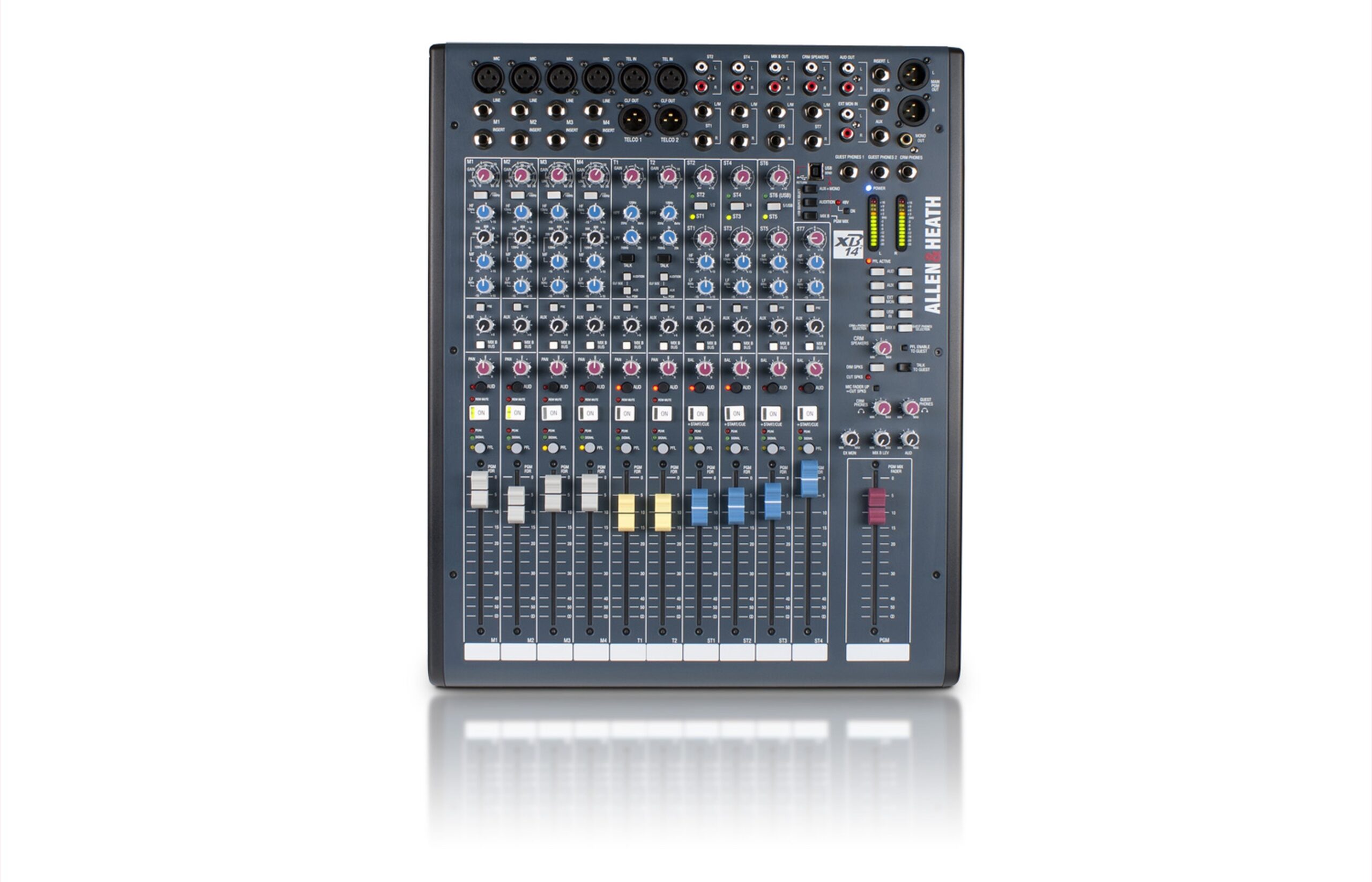

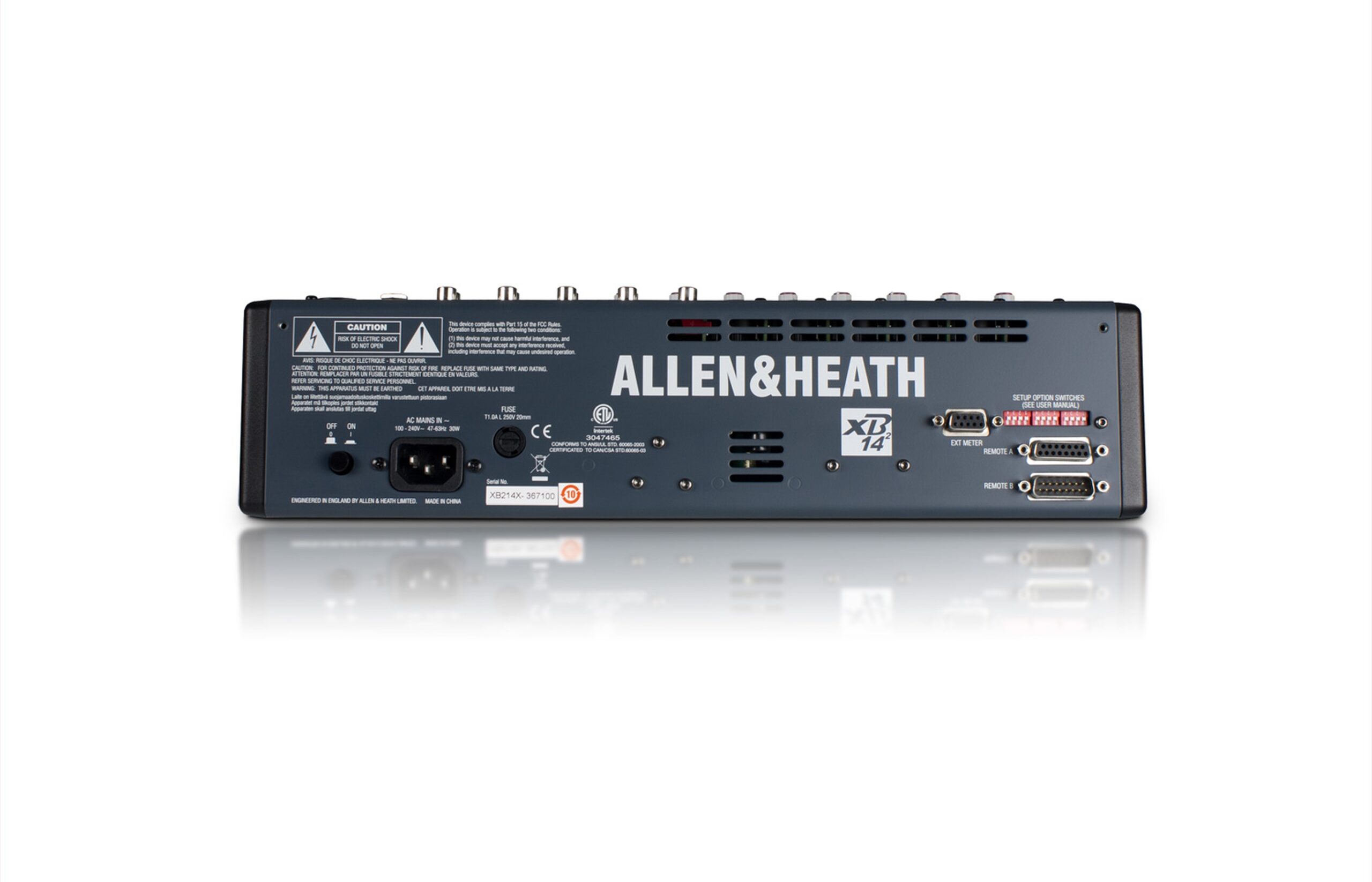

Allen & Heath XB-14-2 10-channel Broadcast Mixer
R29740,00
- 4 x Mic/Line Channels
- 4 x Dual-Source Stereo Channels
- 2 x Telco Channels
- USB Sound Card for Mac & Windows
- Audition Bus, Aux Bus, Mix B
- DuoPre Mic Preamps
- MusiQ HPF & 3-Band EQ
- Remote-Controlled Channel Mutes
- Fader-Start Sensing & Start/Cue Function
- Output Matrix with Guest Headphones
XB-14-2 offers a host of specialised broadcast features that normally come at a much higher price, including telephone communication (telco) channels, mic channel ON switch sensing, stereo channel start/cue outputs for playback device control, automatic muting of speaker outputs and much more.
DuoPre Preamps
With 69dB of gain available on the mic inputs, the XB-14-2 preamps are optimised for the low-output dynamic microphones used in broadcast applications.
USB Audio Interface
The class-compliant USB audio interface features useful routing options for recording and broadcast applications.
Audition Bus
The dedicated stereo audition bus can be used for auditioning or off air recording. Press the Audition button to transfer the mix from the program feed over to the audition bus.
Telco
Two Telco channels provide a selectable clean-feed output (LR PGM, Aux or Audition bus), variable high pass and low pass filters to optimise the frequency range of telephone callers, and a Talk button.
Upgraded and Improved, The Evolution of the XB-14
XB-14-2 incorporates new features based on feedback from broadcasters who have built their operations around the original XB-14. With a wealth of routing options, dual stereo channels for up to 7 stereo sources, and the addition of a dedicated Audition bus, enhanced microphone preamps and stereo channel gain range, XB-142 satisfies the demands of small radio and internet broadcasters as well as larger studios with multiple rooms. Featuring no less than 27 logic I/O for remote control and 15 configuration switches, XB-14-2 is a highly flexible solution.
Easy to Use, Self or Producer Operated
Whether you need a mixer for a self-operated broadcast situation, or whether you have a separate studio and engineer, the XB-14-2 has the features to fit. Separate monitor mixes can be created for operator and guests or presenter, so the engineer can check levels and cue sources while the presenter or guest can listen to a different source. The engineer/producer can communicate to the guest or presenter using the Talk feature, as well as speaking off-air with telephone callers. There is also the facility for remote control of channel mutes from the studio using the remote interface connectors – ideal for studio situated mute or ‘cough’ switches.
SHIPPING & DELIVERY
At Tronic ProAudio, we partner with trusted South African courier services including The Courier Guy and MDS Collivery.net to ensure your order reaches you safely. Once your order has been dispatched, you’ll receive a confirmation email along with a tracking number to monitor your delivery.
We strive to process and dispatch all orders promptly. Delivery timelines are subject to factors such as payment confirmation, address verification, delivery area, and product availability.
In the unlikely event that you receive the wrong item or a defective product, please email us a return request within 3 working days of receiving your order. Kindly note that we do not offer cash refunds.
