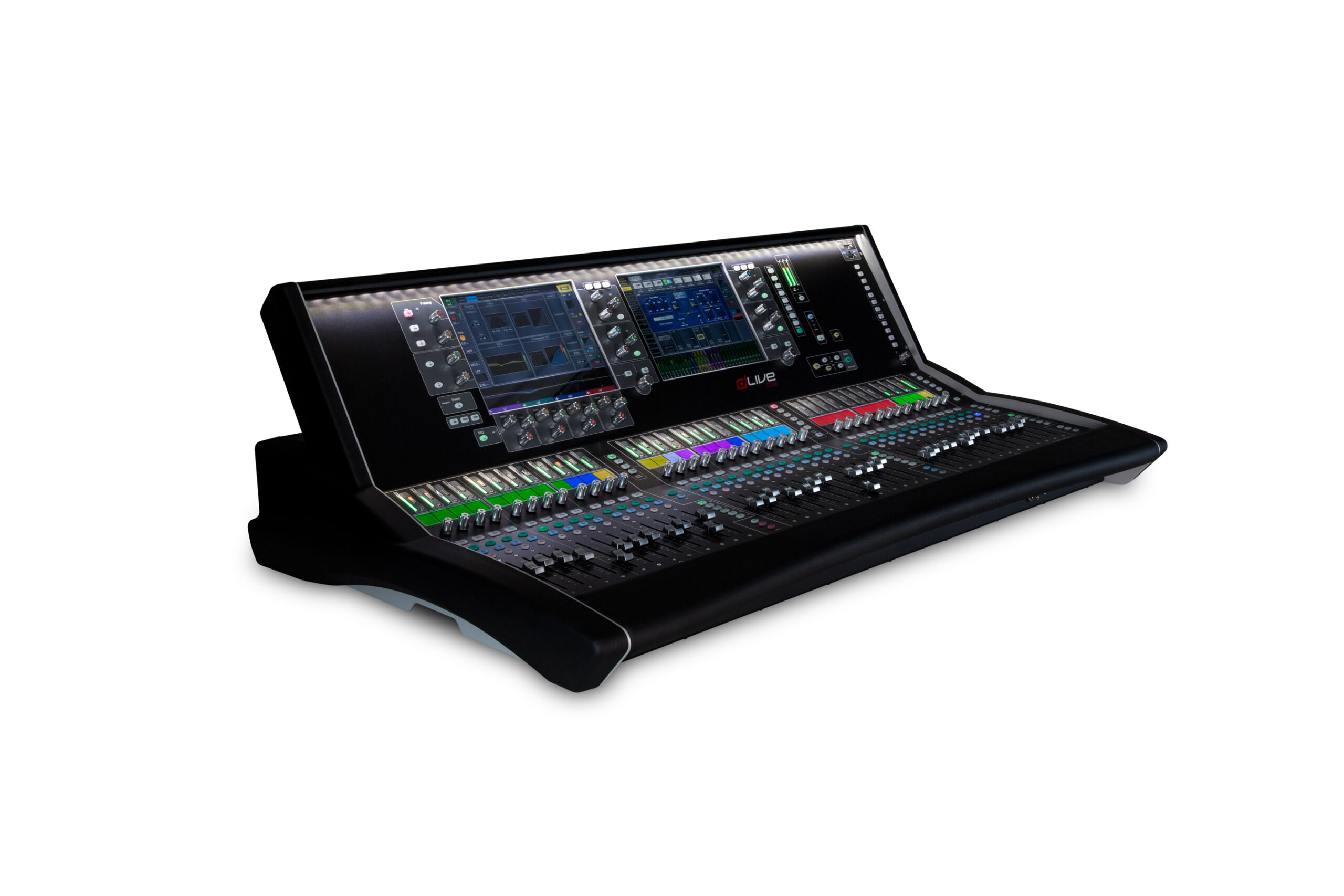

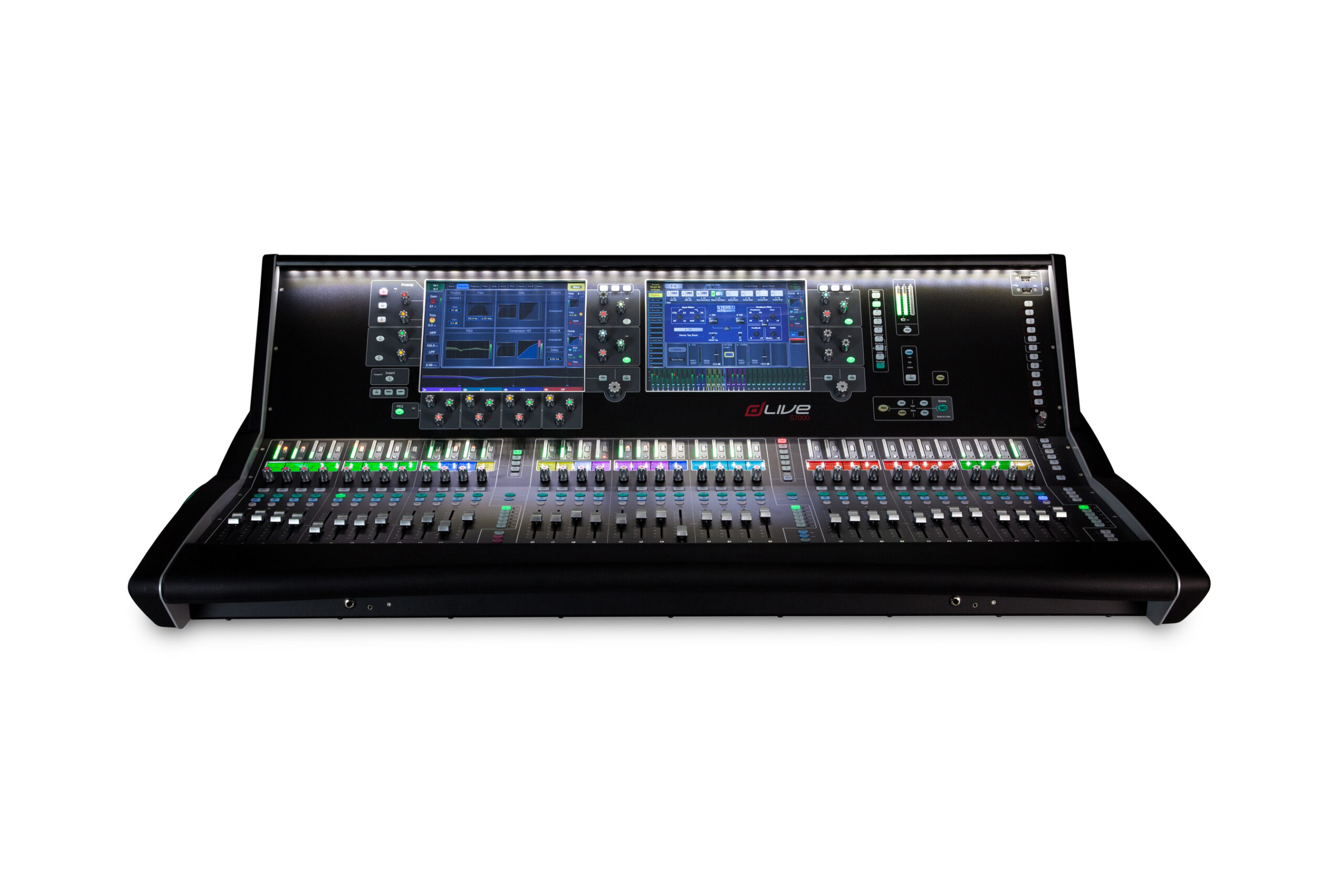

Allen & Heath dLive S7000 Control Surface for MixRack
Allen & Heath dLive S7000 Control Surface Features:
- Control surface for dLive mixing systems
- Dual 12″ touchscreens deliver intuitive control and at-a-glance visual feedback
- 36 faders and 3 pages of 6 rotary controllers provide superb tactile control
- Assignable inputs, virtual scribble strips, and 26 customizable SoftKeys for ease of use
- Dedicated multimode EQ view for easy sound shaping
- Configurable widget areas provide you with quick access to scenes, meters, effects, and more
- Dual redundant hot-swappable power supply capability offers amazing reliability
- Durable high-grade metal construction
Tech Specs
- Type:DLive Control Surface
- Channels:36 channel faders with 6 layers
- Inputs – Mic Preamps:8 x XLR (mic/line)
- Phantom Power:8 channels
- Outputs – Main:8 x XLR
- Inputs – Digital:2 x XLR (AES3)
- Outputs – Digital:3 x XLR (AES3)
- Busses/Groups:64 bus internal architecture (including all groups, aux, matrix, mains, effects)

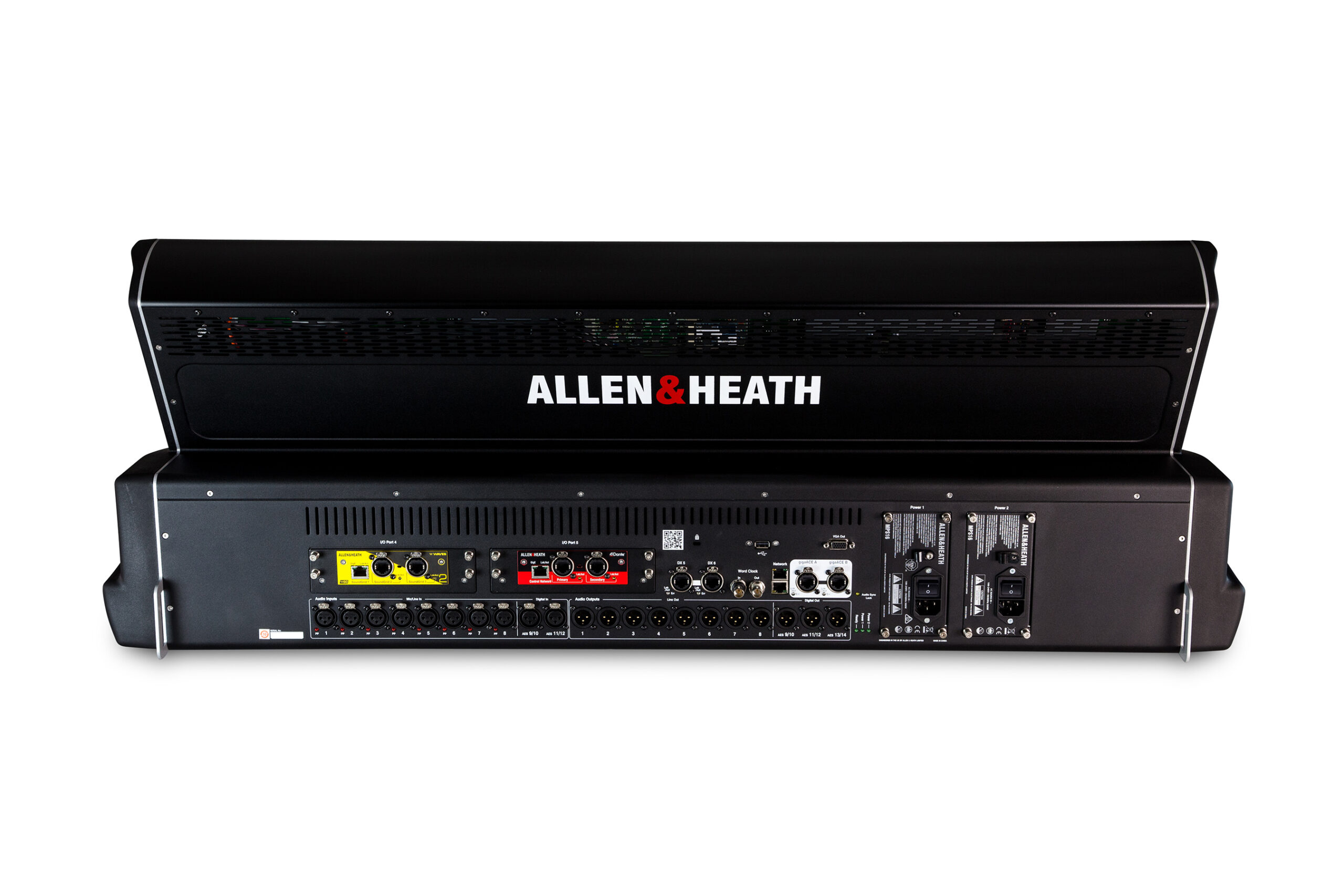

- Data I/O:2 x RJ45 Gigabit Ethernet, 2 x gigaACE Link Ethernet, 2 x DX link EtherCon ports
- Headphones:2 x 1/4″, 2 x 1/8″
- USB:3 x USB Type A
- Computer Connectivity:Ethernet, USB (2 x 2)
- I/O Expansion Slots:2 x card slots (128×128 channels each, iLive/GLD option cards)
- Word Clock:In, Out
- Faders:36 x motorized faders
- EQ Bands:4-band parametric EQ
- Effects:16 RackFX
- Height:16.3″
- Depth:28.7″
- Width:34.3″
- Weight:62 lbs.
- Manufacturer Part Number:AH-DLIVE-S7
Description
Design for Live
dLive is Allen & Heath’s flagship digital mixing platform, designed for demanding touring, corporate AV, houses of worship, broadcast, and install applications.
Control Surface with Dual 12″ Touchscreens, 36 Faders, 26 SoftKeys, 6 Rotary Controls, 8 XLR Inputs/Outputs, 2 AES Inputs, 3 AES Outputs, Word Clock I/O, 2 Option I/O Slots, External VGA Output, Dual GigaACE Link, and DX Expander Link
dLive S Class hardware is designed for professional touring, broadcast, and permanent installations, with dual power supply slots for redundancy, and dual redundant audio connections. With higher-grade metal on the sides and folded steel at key points for added rigidity, dLive S Class is built to endure everything that you can throw at it. Without missing a beat.
Flexible Surface Configuration
Speed Up Your Workflow
With a fully customisable layout that allows you to build an interface that reflects your workflow and mixing style, dLive lets you focus on the mix, not the mixer.
Every input or mix can be assigned to any and every fader bank and/or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and a wealth of assignable SoftKeys and 3 pages of 6 assignable rotaries per screen. Bespoke ‘widget’ areas can also be set up on the touchscreens to keep track of scenes, meters, RTA, FX and other custom controls.
dLive Multi-Surface
Connect Up to 4 Surfaces to a Single MixRack
Multi-Surface mode allows the connection of up to 4 Surfaces to a single DM MixRack, or 2 Surfaces to a single CDM MixRack, for applications including parallel mixing, sub-mixing or FOH/Monitor configurations with a single MixRack. Any combination of C Class and S Class Surfaces can be used in a Multi-Surface system depending on the needs of the application.
.
