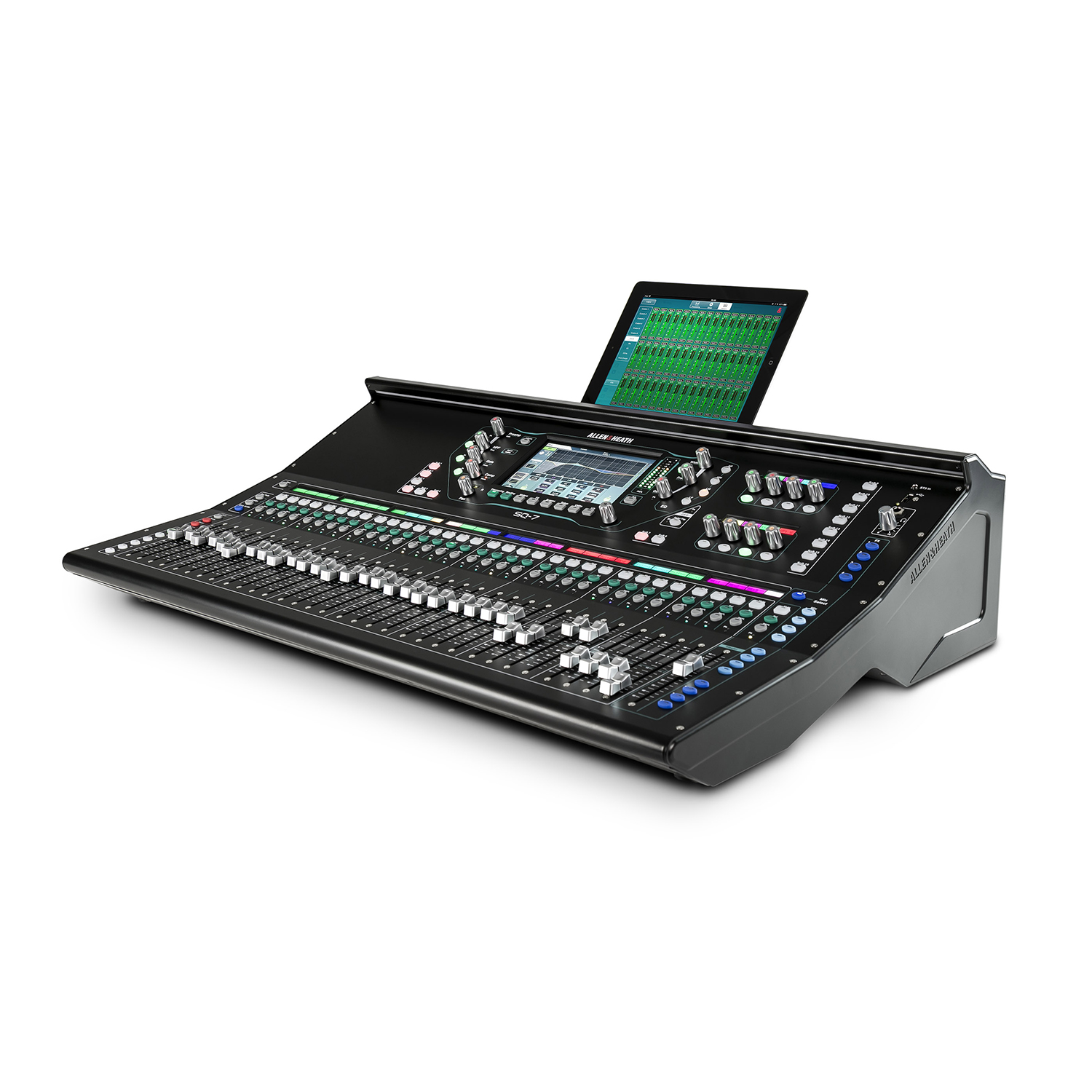

Allen & Heath SQ-7 48-channel Digital Mixer, with 33 Faders, 6 Fader Layers, 32 x 32 USB Interface, and Network Audio Support
R122450,00
Features:
- 48-input digital mixer with 96kHz FPGA processing
- Best-in-class audio quality, with less than 0.7ms latency
- 33 faders for hands-on mixing, with 6 fader layers
- Create up to 12 stereo mixes in addition to the main LR mix
- SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline show prep
- SQ4You personal mixing app (iOS/Android) allows up to 8 performers to craft their own monitor mixes
- 3 stereo matrices
- 8 stereo FX engines with dedicated effects returns
- 7-inch capacitive touchscreen for navigation
- SLink port for remote audio and I/O expansion
- 64-channel I/O port for network audio
- Built-in 32 x 32 USB audio interface for multitrack recording
- SQ-Drive allows for direct recording to a USB drive
- Dedicated physical controls, plus 8 assignable SoftKeys
- Automatic Mic Mixing makes it easy to manage large multi-mic setups
- AES digital output
- Rack-mountable
Technical Specifications
- Type:Digital Mixer
- Channels:48
- Inputs – Mic Preamps:32+1 x XLR (mic/line)
- Phantom Power:32 channels, Talkback
- Inputs – Other:2 x 1/4″ (ST1), 2 x 1/4″ (ST2), 1 x 1/8″ (ST3)
- Outputs – Main:2 x XLR, 2 x 1/4″ (A out, B out)
- Outputs – Other:16 x XLR (stereo mixes, L/R)
- Outputs – Digital:1 x XLR (AES)
- Busses/Groups:36 Bus
- Inserts:Internal Pre EQ/Compressor
- Talkback:1 x XLR
- MIDI I/O:USB (control)
- Data I/O:1 x EtherCon (dSnake, DX mode, gigaACE), 1 x Ethernet RJ-45 (LAN TCP/IP)
- Headphones:1 x 1/4″
- USB:1 x Type B, 1 x Type A
- Computer Connectivity:USB (32 x 32), Ethernet
- Remote:1 x 1/4″ (footswitch)
- I/O Expansion Slots:1 x Option card port (Dante, Waves)
- Faders:33 x 100mm motorized
- A/D Resolution:24-bit/96kHz
- EQ Bands:Parametric EQ, 28-band Graphic
- Effects:Delay, Reverb, Chorus, Flanger, Phaser (8 x RackFX engine)
- Signal Processing:Compressor, Gate
- DAW Control:MIDI DAW control via USB
- Screen:7″ color touch screen
- Storage:USB Type A (16 x 16)
- Software:Wireless Remote Mixing app iPad/Android (network router not included)
- Power Source:AC Adapter
- Height:7.8″
- Depth:20.3″
- Width:31.7″
- Weight:39.3 lbs.
- Manufacturer Part Number:AH-SQ-7
A New Standard in Compact Digital Mixing
48 channel, 96kHz digital mixer for live sound, AV and installation.The Allen & Heath SQ-7 is the largest mixer in the SQ series, designed to meet the needs of demanding audio professionals. Featuring an expansive 32+1 faders, 32+1 onboard preamps, 16 assignable SoftKeys, and 8 assignable Soft Rotaries, the SQ-7 offers unmatched control and customisation.
Drag-and-Drop Layout
Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, allowing you to build a mixing environment that works for you.
At-a-Glance Metering
Each strip features our patented Chromatic channel metering system, giving you at-a-glance level indication thanks to LEDs with variable brightness and colour.
Intuitive Control
SQ’s dashboard is centred around a high-res 7” touchscreen, framed by an array of high-grip, illuminating encoders to create an intuitive, integrated blend of clear visual feedback and immediate, hands-on control.
Speed Up Your Workflow
All SQ mixers feature SoftKeys which can be assigned to commonly used functions. The SQ-6 and SQ-7 also provide assignable Soft Rotaries for even more custom control.
Processing
Powerful Processing
Every input has HPF, a super-fast gate with side chain and filter, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes have both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.
World-Class FX
SQ is armed with 8 stereo FX engines and comes complete with the acclaimed RackExtra library, featuring emulations of legendary classic reverbs, gated reverbs, delays, modulators and more. Every engine has its own dedicated stereo return too, so you don’t need to use up any of your 48 input channels.
Integrated USB Interface, Record. Stream. Mix.
SQ’s built-in 32×32 96kHz audio interface enables easy multitrack recording, backing-track playback, livestreaming and virtual soundcheck. The interface is class-compliant on Mac OS X making it truly plug ‘n play, with ASIO and WDM compatible drivers available for Windows computers. You can even map the SQ’s faders, rotaries, channel keys and soft-keys to control your favourite DAW using the Allen & Heath MIDI Control app.
